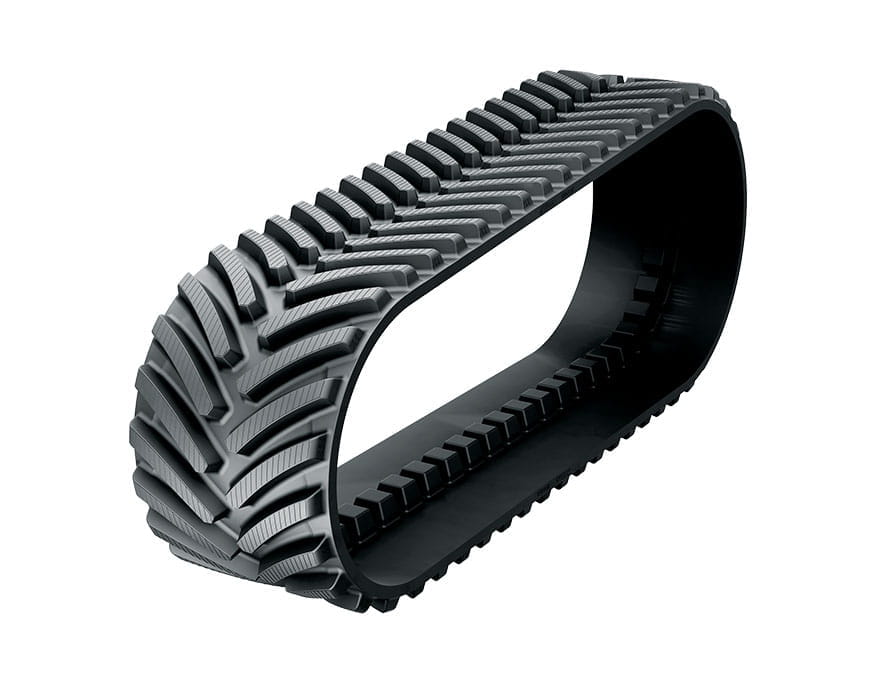

MITRAK

Key benefits:

High-resistance tread compound: specially formulated rubber tread resists wear and cuts, ensuring long-lasting performance even in demanding conditions
Reinforced track body: three auxiliary wire layers placed at different angles above the steel cables improve track stability and ensure consistent performance
High-strength steel cables: brass-coated galvanized steel cables provide uniform strength along the track, supporting heavy loads and extending service life
Protective wire layer: an extra wire layer protects steel cables from drive-wheel abrasion, preserving track integrity and reliability over time

Download Additional Product Information

Mitas MITRAK Brochure

Open Download

Mitas Agricultural Tires Catalogue

Open Download

Unit

Imperial

Metric

MITRAK - Friction Drive SD

Machine		Size	Width (mm)	Tread				Carcass		Guide Lug
Brand	Model	Size	Width (mm)	Qty	Height (mm)	Tip width (mm)	Pitch (in)	Main cable size (mm)	Thickness (mm)	Quantity	Length (mm)
CAT	35/45/55	18"x53x6"	18" (457)	106	65,02	48	6	5,4	37	53	112
CAT	35/45/55	25"x53x6"	25" (635)	106	65,02	48	6	5,4	37	53	112
CAT	35/45/55	30"x53x6"	30" (762)	106	65,02	48	6	5,4	37	53	112
CAT	65/75/85/95	25"x57x6"	25" (635)	114	65,02	48	6	5,4	37	57	112
CAT	65/75/85/95	30"x57x6"	30" (762)	114	65,02	48	6	5,4	37	57	112
AGCO	Challenger MT700 (series)	18"x58x6"	18" (457)	116	65,02	48	6	5,4	37	58	112
AGCO	Challenger MT700 (series)	25"x58x6"	25" (635)	116	65,02	48	6	5,4	37	58	112
AGCO	Challenger MT700 (series)	30"x58x6"	30" (762)	116	65,02	48	6	5,4	37	58	112
AGCO	Challenger MT800 (series) Fendt Vario 1100 (series)	25"x66x6"	25" (635)	132	65,02	48	6	5,4	37	66	112
AGCO	Challenger MT800 (series) Fendt Vario 1100 (series)	30"x66x6"	30" (762)	132	65,02	48	6	5,4	37	66	112
AGCO	Challenger MT800 (series) Fendt Vario 1100 (series)	36"x66x6"	36" (915)	132	65,02	48	6	5,4	37	66	112
AGCO	FENDT Vario 900MT (MT738/740/743)	18"x60x6"	18" (457)	120	65,02	48	6	5,4	37	60	120
AGCO	FENDT Vario 900MT (MT738/740/743)	25"x60x6"	25" (635)	120	65,02	48	6	5,4	37	60	120
AGCO	FENDT Vario 900MT (MT738/740/743)	30"x60x6"	30" (762)	120	65,02	48	6	5,4	37	60	120
John Deere	8000T	18"x54x6"	18" (457)	108	65,02	48	6	5,4	37	54	112
John Deere	8000T	25"x54x6"	25" (635)	108	65,02	48	6	5,4	37	54	112
John Deere	8000T	30"x54x6"	30" (762)	108	65,02	48	6	5,4	37	54	112
John Deere	8RT	18"x59x6"	18" (457)	118	65,02	48	6	5,4	37	59	112
John Deere	8RT	25"x59x6"	25" (635)	118	65,02	48	6	5,4	37	59	112
John Deere	8RT	30"x59x6"	30" (762)	118	65,02	48	6	5,4	37	59	112
John Deere	9000T	30"x63x6"	30" (762)	126	65,02	48	6	5,4	37	63	112
John Deere	9000T	36"x63x6"	36" (914)	126	65,02	48	6	5,4	37	63	112
John Deere	9 RT	30"x65x6"	30" (762)	130	65,02	48	6	5,4	37	65	112
John Deere	9 RT	36"x65x6"	36" (914)	130	65,02	48	6	5,4	37	65	112
CLAAS	Terra Trac Lexion	25"x44x6"	25" (635)	88	65,02	48	6	5,4	37	44	88
CLAAS	Terra Trac Lexion	29"x44x6"	29" (735)	88	65,02	48	6	5,4	37	44	88
CLAAS	Terra Trac Lexion	30"x44x6"	30" (762)	88	65,02	48	6	6,4	37	44	88
CLAAS	Terra Trac Lexion	35"x44x6"	35" (890)	88	65,02	48	6	6,4	37	44	88
CLAAS	Terra Trac Lexion	36"x44x6"	36" (914)	88	65,02	48	6	6,4	37	44	88

MITRAK - Friction Drive HD

Machine		Size	Width (mm)	Tread				Carcass		Guide Lug
Brand	Model	Size	Width (mm)	Qty	Height (mm)	Tip width (mm)	Pitch (in)	Main cable size (mm)	Thickness (mm)	Quantity	Length (mm)
CAT	35/45/55	25"x41x7.78"	25" (635)	82	70,1	50,8	7,78	5,4	41	41	136
CAT	35/45/55	30"x41x7.78"	30" (762)	82	70,1	50,8	7,78	5,4	41	41	136
CAT	65/75/85/95	25"x44x7.78"	25" (635)	88	70,1	50,8	7,78	5,4	41	44	136
CAT	65/75/85/95	30"x44x7.78"	30" (762)	88	70,1	50,8	7,78	5,4	41	44	136
CAT	65/75/85/95	36"x44x7.78"	36" (914)	88	70,1	50,8	7,78	5,4	41	44	136
AGCO	Challenger MT700 (series)	25"x45x7.78"	25" (635)	90	70,1	50,8	7,78	5,4	41	45	136
AGCO	Challenger MT700 (series)	30"x45x7.78"	30" (762)	90	70,1	50,8	7,78	5,4	41	45	136
AGCO	Challenger MT800 (series) Fendt Vario 1100 (series)	30"x51x7.78"	30" (762)	102	70,1	50,8	7,78	5,4	41	51	136
AGCO	Challenger MT800 (series) Fendt Vario 1100 (series)	36"x51x7.78"	36" (914)	102	70,1	50,8	7,78	5,4	41	51	136
AGCO	FENDT Vario 900MT (MT738/740/743)	30"x46x7.78"	30" (762)	92	70,1	50,8	7,78	5,4	41	46	136
John Deere	8000T	25"x42x7.78"	25" (635)	84	70,1	50,8	7,78	5,4	41	42	136
John Deere	8000T	30"x42x7.78"	30" (762)	84	70,1	50,8	7,78	5,4	41	42	136
John Deere	8RT	25"x46x7.78"	25" (635)	92	70,1	50,8	7,78	5,4	41	46	136
John Deere	8RT	30"x46x7.78"	30" (762)	92	70,1	50,8	7,78	5,4	41	46	136
John Deere	9000T	30"x49x7.78"	30" (762)	98	70,1	50,8	7,78	5,4	41	49	136
John Deere	9000T	36"x49x7.78"	36" (914)	98	70,1	50,8	7,78	5,4	41	49	136
John Deere	9 RT	30"x50x7.78"	30" (762)	100	70,1	50,8	7,78	5,4	41	50	136
John Deere	9 RT	36"x50x7.78"	36" (914)	100	70,1	50,8	7,78	5,4	41	50	136
